Gigabyte Products

Discover our comprehensive range of Gigabyte products designed to enhance your experience.

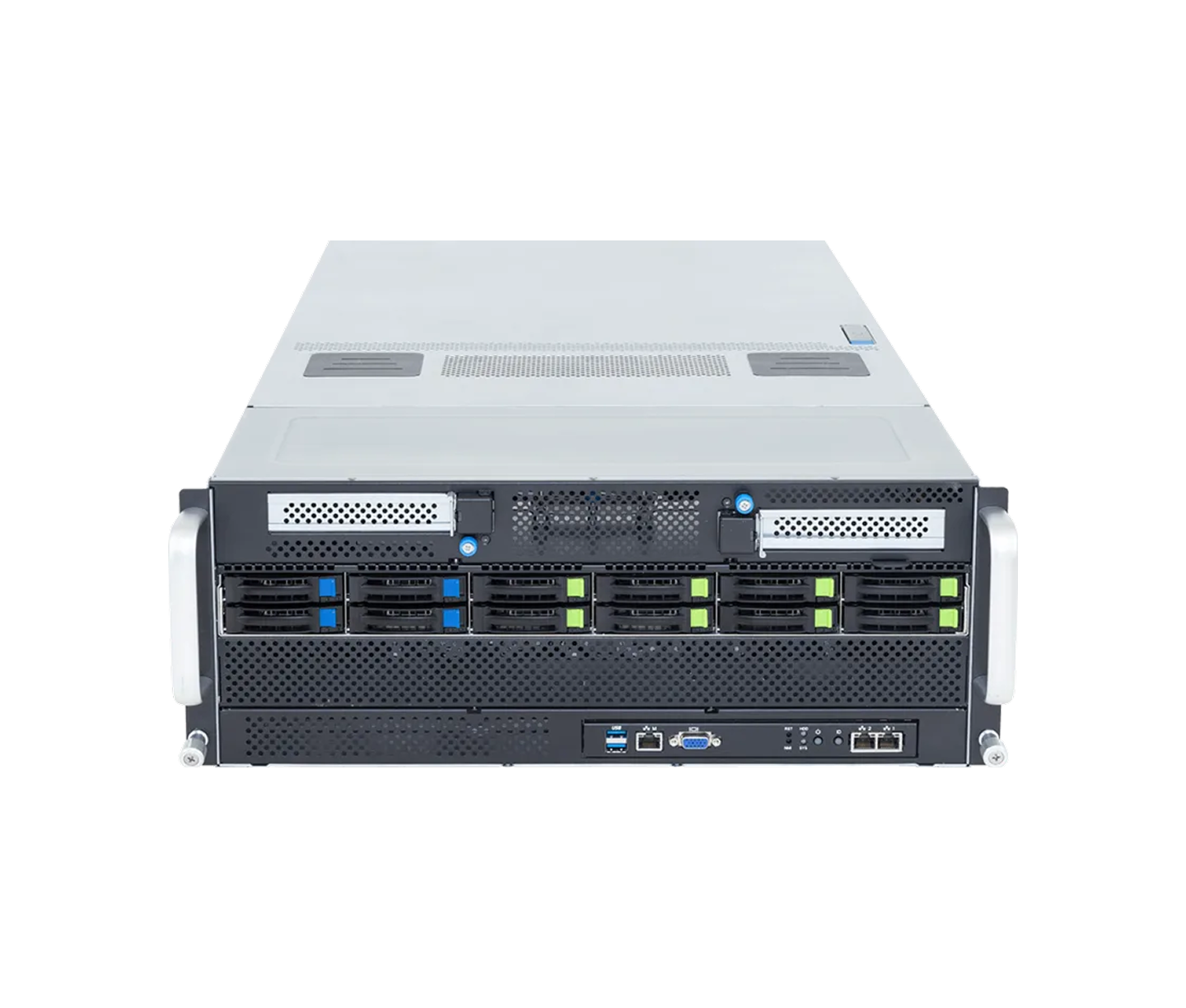

Gigabyte G294-Z42-AAP2

Brochure

Where to buy

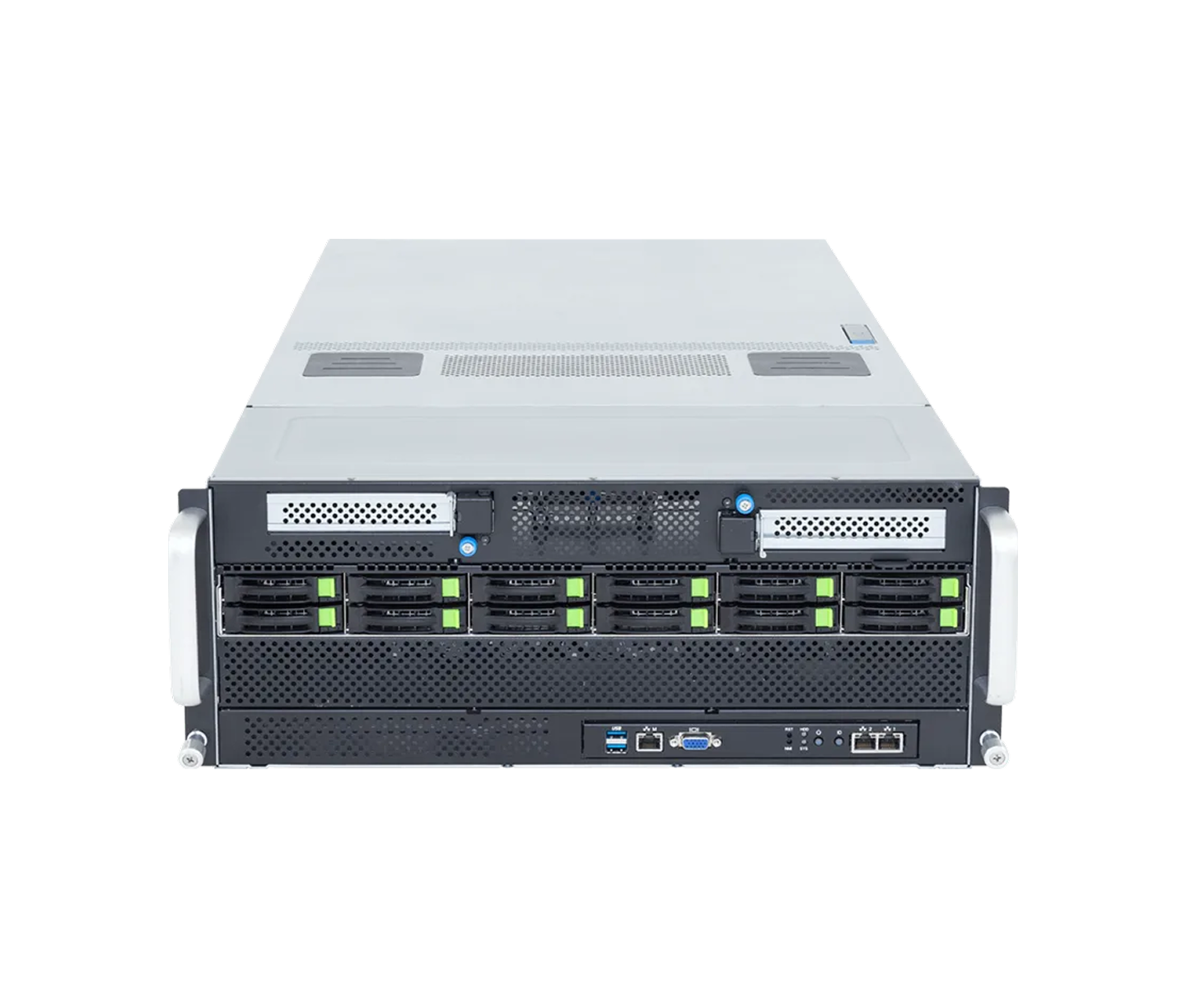

Gigabyte G494-ZB4-AAP2

Brochure

Where to buy

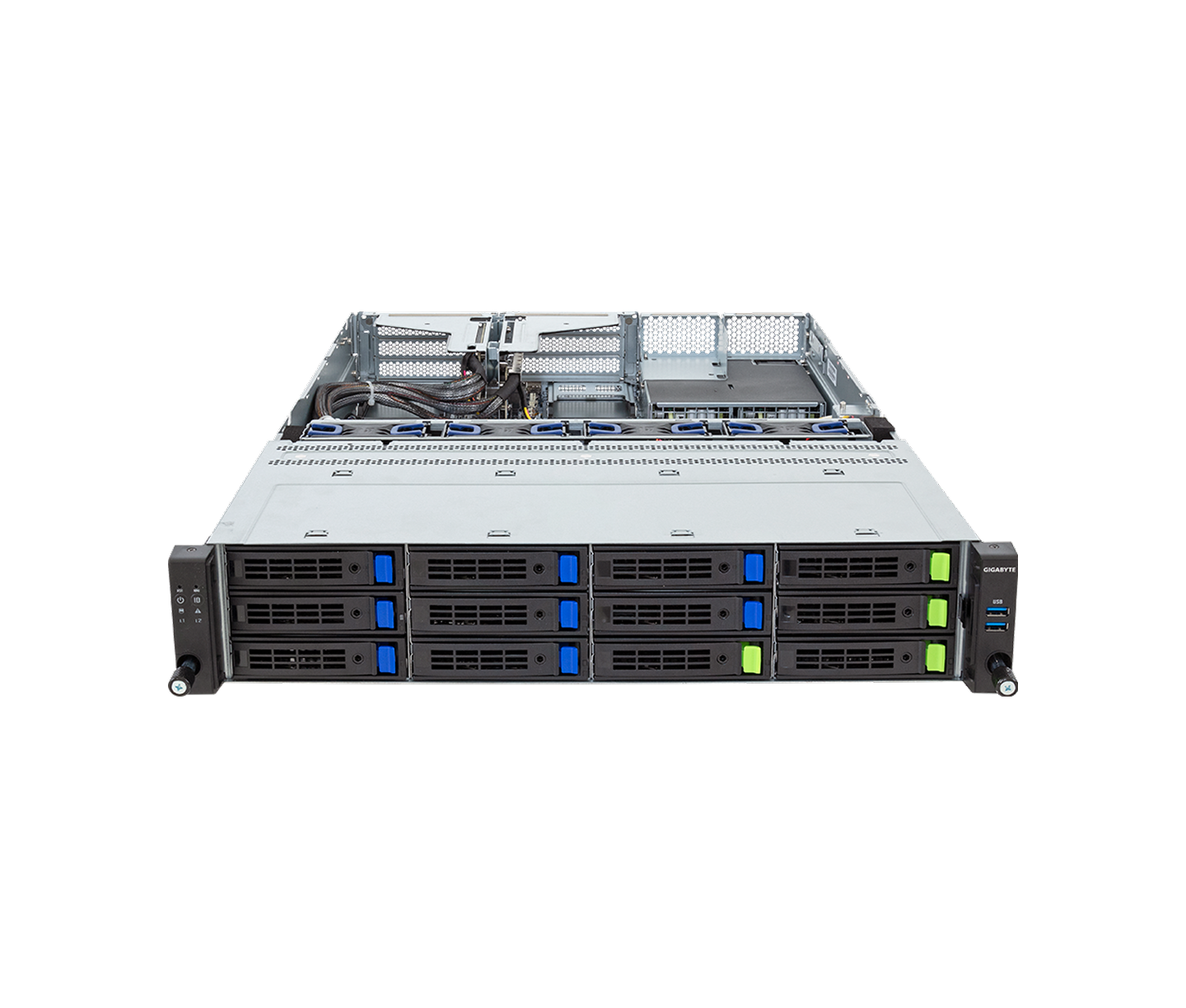

Gigabyte R263-Z34-AAH1

Brochure

Where to buy

Gigabyte G294-Z42-AAP2

Processor	Dual AMD EPYC™ 9004 Series processors, up to 128 cores per CPU, TDP up to 400W
Memory	24x DIMM slots, DDR5 4800MHz, Registered RDIMM / 3DS RDIMM support
GPU Support	Up to 8x double-slot PCIe Gen5 x16 GPU cards
Storage Drives	4x 2.5" hot-swap Gen5 NVMe/SATA drive bays
PCIe Slots	2x PCIe Gen5 x16 low-profile slots (front) + 8x PCIe Gen5 x16 FHFL slots for GPUs
Networking	2x 10Gb/s BASE-T LAN ports (Intel® X710-AT2) + 1x Management port
Rack Height	2U
Power Supplies	3x 3000W 80 PLUS Titanium redundant power supplies (2+1)
System Management	GIGABYTE Management Console (AMI MegaRAC SP-X) / IPMI 2.0

Gigabyte G494-ZB4-AAP2

Processor	Dual AMD EPYC™ 9004 Series processors, supporting up to 400W TDP
Memory	24x DIMM slots, DDR5 memory architecture up to 4800MHz
GPU Support	Optimized for high-density accelerator baseboards (such as NVIDIA HGX H100 4-GPU platform)
Storage Drives	High-density hot-swap drive bays supporting NVMe / SATA / SAS interfaces
PCIe Slots	Multiple PCIe Gen5 expansion slots for high-speed NICs and InfiniBand connectivity
Networking	Integrated dual-port networking options plus dedicated IPMI remote management port
Rack Height	4U
Power Supplies	4x 80 PLUS Platinum/Titanium redundant power supplies (N+N configuration)
System Management	Aspeed® AST2600 management controller, GIGABYTE Management Console

Gigabyte R263-Z34-AAH1

Processor	Dual AMD EPYC™ 9004 Series processors, general-purpose enterprise architecture
Memory	24x DIMM slots supporting DDR5 ECC Registered memory modules
Storage Drives	Up to 12x 3.5" or 2.5" hot-swap SAS/SATA drive bays at the front
PCIe Slots	Up to 8x PCIe Gen5 expansion slots + OCP 3.0 mezzanine slots (Non-GPU layout)
Internal Boot	2x M.2 slots via PCIe Gen3 or Gen4 interface for OS installation
Networking	Dual OCP 3.0 cards support, 1x dedicated management LAN
Rack Height	2U General Purpose
Cooling	4x or 6x high-airflow hot-swap redundant cooling fans
Power Supplies	Dual 80 PLUS Titanium hot-swap redundant power supplies
System Management	GIGABYTE Management Console with web-based interface (AMI MegaRAC SP-X)
