D-link Products

Discover our comprehensive range of D-link products designed to enhance your experience.

Brochure

Discuss with us

Brochure

Discuss with us

Brochure

Discuss with us

Brochure

Discuss with us

Brochure

Discuss with us

Brochure

Discuss with us

Brochure

Discuss with us

Discuss with us

Back to Home

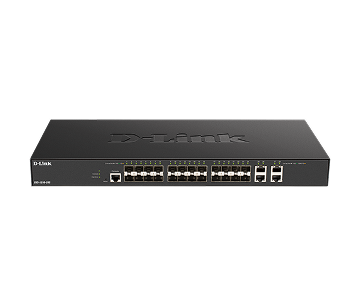

Interfaces	24x 10G SFP+ Ports, 4x 10GBASE-T Ports
Switching Capacity	560 Gbps
Maximum Forwarding Rate	416.64 Mpps
Layer 2+ Features	Static Routing (Max 32 IPv4 / 32 IPv6 entries), IGMP/MLD Snooping
Management Options	Web UI, D-Link Network Assistant (DNA), Full CLI via Console Port
Security Features	Access Control List (ACL), Port Security, D-Link Safeguard Engine
Green Technology	IEEE 802.3az Energy Efficient Ethernet, Smart Fans Architecture

Interfaces	24x 10GBASE-T Ports, 4x 10G SFP+ Ports
Switching Capacity	560 Gbps
Maximum Forwarding Rate	416.64 Mpps
Network Cabling	Cat 6/6A copper links up to 100m, fiber extensions via SFP+
VLAN Support	802.1Q VLAN, Auto Voice/Surveillance VLAN, Asymmetric VLAN
Quality of Service (QoS)	802.1p priority queues, bandwidth control per port
Hardware Form Factor	1U Standard 19-inch rackmount chassis

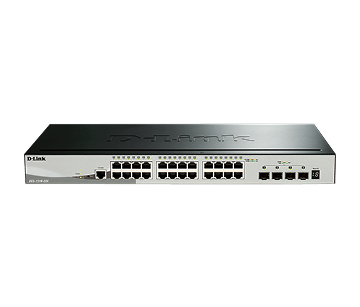

Interfaces	24x 10/100/1000 Mbps Base-T Ports, 4x 10G SFP+ Ports
Switching Capacity	128 Gbps
Maximum Forwarding Rate	95.24 Mpps
Hardware Stacking	Up to 6 units per stack, up to 40 Gbps stacking bandwidth
Layer 3 Routing	IPv4/IPv6 Static Routing entries
Traffic Management	Bandwidth control, 802.1p Quality of Service, Queue Handling
Management Framework	Web UI, CLI, Telnet, SNMP v1/v2c/v3, SSL/SSH encryption

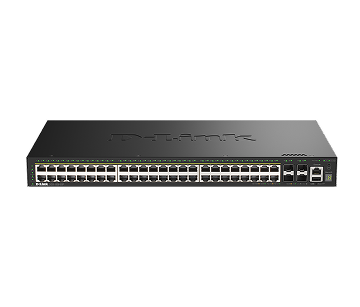

Interfaces	48x 10/100/1000 Mbps Base-T PoE Ports, 4x 10G SFP+ Ports
Switching Capacity	176 Gbps
Maximum Forwarding Rate	130.95 Mpps
PoE Power Budget	Total 370W capability (Supports IEEE 802.3af and 802.3at PoE+)
Stacking Capability	Physical stacking through 10G SFP+ ports (up to 6 devices)
Advanced Management	Layer 3 static routing, network-wide surveillance optimizations
Thermal Profile	Smart internal cooling fans with automatic multi-speed scaling

Interfaces	48x 10/100/1000 Mbps Base-T PoE Ports, 4x Gigabit SFP Ports
Switching Capacity	104 Gbps
Maximum Forwarding Rate	77.4 Mpps
PoE Specifications	Total 370W power budget, up to 30W delivery per designated port
Stacking Feature	Virtual Stacking support via D-Link Single IP Management (SIM)
Security Engine	802.1X Access Control, RADIUS/TACACS+ integration, Broadcast Control
L2+ Maintenance	Dual configuration files, Loopback Detection, cable diagnostics

Interfaces	24x Gigabit PoE, 2x 10GBASE-T, 4x 10G SFP+ Ports
Switching Capacity	168 Gbps
Maximum Forwarding Rate	125 Mpps
PoE Architecture	IEEE 802.3at PoE+ compliance, massive 370W overall system budget
Layer 3 Protocols	Lite Layer 3 deployment including OSPFv2, RIP v1/v2, IGMP, static routes
Resilience Design	6 kV embedded surge defense on all network copper interfaces
High Availability	Supports external redundant power supply unit connection (RPS)

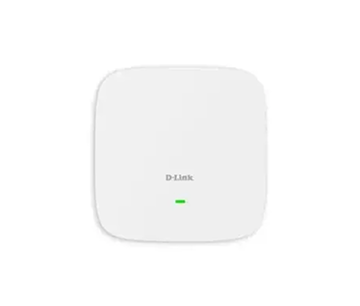

Wireless Standard	Wi-Fi 6 (IEEE 802.11ax deployment standard)
Data Throughput	Up to 1800 Mbps (5 GHz band up to 1201 Mbps \| 2.4 GHz band up to 574 Mbps)
Antenna Setup	Internal omni-directional concurrent execution antennas
Physical Interface	1x 10/100/1000 Mbps Base-T LAN port with integrated PoE injection
Network Features	MU-MIMO channels, OFDMA modulation efficiency, Band Steering
Encryption Formats	WPA/WPA2/WPA3 Enterprise and Personal system authentication
Chassis Design	Plenum-rated layout optimized for ceiling or high-wall indoor deployment

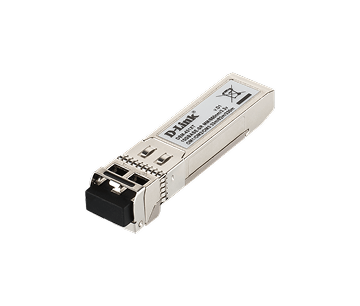

Form Factor Type	Pluggable SFP+ Transceiver Module
Network Speed	10 Gigabit Ethernet (10GBASE-SR link configuration)
Media Application	Multi-Mode Fiber optic infrastructure cabling (MMF)
Wave Length	850 nm optical transmission channel
Distance Bound	Maximum reach up to 300 meters using optimized OM3 core fiber
Interface Core	Duplex LC connector terminal layout
Monitoring Tech	Digital Diagnostic Monitoring (DDM) telemetry support
